UPC: CS2700X
Brand: EIZO
: 3450
: 1
El monitor ColorEdge CG2700X 4K HDR de 27" de EIZO ofrece una resolución de 3840 x 2160, 500 nits de brillo y compatibilidad con gamma HDR, lo que le permite reproducir contenido con un alto grado de detalle. La conectividad USB-C proporciona una experiencia optimizada para que los profesionales edición de video, desarrollo de juegos, fotografía y más pueden dedicar su tiempo a crear.
EIZO diseñó el ColorEdge CG2700X con tecnología In-Plane Switching (IPS), soporte de 10 bits para 1,07 mil millones de colores, una LUT de 16 bits, una relación de aspecto de pantalla ancha de 16:9, una relación de contraste estático de 1450:1, brillo de 500 nits. , 164 píxeles por pulgada y un tiempo de respuesta de 13 ms (GtG). Utilizando los ángulos de visión horizontal y vertical de 178°, es posible ver contenido desde prácticamente cualquier posición. Esta pantalla tiene una entrada HDMI y una entrada DisplayPort, además de un puerto USB-C que admite modo alternativo DP, transferencias de datos de hasta 5 Gb/s usando el estándar USB 3.2 Gen 1 y hasta 94 W de potencia para cargar dispositivos. Los puertos USB adicionales incluyen una entrada USB-B 3.2 Gen 1, dos salidas USB-A 3.2 Gen 1 y dos salidas USB-A 2.0. Además, hay un puerto Gigabit Ethernet RJ45 que proporciona acceso a la red cuando el CG2700X está conectado a su sistema host a través de USB-C.
El ColorEdge CG2700X ha sido diseñado para admitir el 99 % de las gamas de colores Adobe RGB y el 98 % de las gamas de colores DCI-P3, así como HLG (Hybrid Log Gamma) y PQ (Perceptual Quantization) para mostrar y editar videos HDR. Para ayudar a mejorar aún más la visualización y la accesibilidad, hay una inclinación vertical de -5 a 35°, un giro hacia la izquierda/derecha de 344° (±172°), una rotación en el sentido de las agujas del reloj de 90° y un ajuste de altura de 6,1".
4K UHD Resolution
The ColorEdge CG2700X displays at 4K UHD (3840 x 2160) resolution, which is four times the size of Full HD. This level of detail ensures that high resolution content is displayed crisply. The 27" screen provides ample space for displaying 4K content natively or Full HD content in full with enough space to show toolbars, palettes, and other windows or applications. This makes the monitor versatile for video editing, 3DCG creation, game development, photography, and other creative fields.
Single Cable Connection with USB-C
The ColorEdge CG2700X features USB-C connectivity that allows you to display video, transmit USB signals, and supply power to a connected device, such as a tablet or notebook computer. This convenient multi-purpose connectivity makes it faster and easier to connect when moving between workstations or working remotely.
Power Delivery
The ColorEdge CG2700X reliably charges a MacBook Pro or other high-end laptops with 94W power delivery. This eliminates the need for a laptop's bulky power supply unit, freeing up space in your bag and on the desk.
Stable Network Connection
While many modern laptops are not equipped with a dedicated LAN port, the monitor has one directly built in for a stable wired connection. Connecting a laptop via USB-C provides access to the network through the monitor for sharing creative assets and files, carrying out post-production work remotely, and enables network-based color management via ColorNavigator Network.
Built-In Sensor to Automate Your Workflow
The ColorEdge CG2700X's built-in sensor can be set to calibrate the monitor automatically at designated times. This eliminates the need for a third-party calibration device and ensures your screen stays color accurate. In addition, the sensor swings onto the screen, taking up minimal space and allowing you to continue working even during calibration.
EIZO does not recommend carrying out color-critical work during recalibration, as the screen's colors will be adjusted.
ColorNavigator 7 Color Management Software
A monitor needs to be calibrated at regular intervals to maintain color accuracy. EIZO's proprietary ColorNavigator 7 software provides an intuitive and highly precise solution to color management. It allows you to schedule automatic recalibration, calibrate all color modes simultaneously, and conduct correlation with external sensors to match the studio's internal color management framework. Calibration information is saved to the monitor instead of the operating system, so users do not have to recalibrate even when using a different PC.
ColorNavigator Network Color Management Software
ColorNavigator Network provides centralized quality control (QC) of ColorEdge monitors for studios, printing houses, and other enterprises with multiple creators and editors who work on shared projects. With NetAgent or ColorNavigator 7 installed on the workstation, administrators can manage multiple ColorEdge monitors via web browser enabling quality control even from remote locations. ColorNavigator Network is hosted on a secure cloud server to free you from the initial investment and running costs of providing your own server.
Vivid Colors Reproduced to Industry Standards
The monitor's wide color gamut faithfully reproduces 98% of the DCI-P3 standard used in digital cinema and supports the BT.2020 standard used in broadcasting. In addition, it covers 99% of the Adobe RGB color space so images shot in Adobe RGB will be displayed correctly. It also covers almost the entire ISO-coated and US web-coated CMYK color spaces used in printing.
3D LUT for Accurate Color Display
The monitor uses a 3D LUT which adjusts colors individually on an RGB cubic table. With the supported ColorNavigator 7 software's emulation function, creators can check how content will appear to their audience. The 3D LUT also improves the monitor's additive color mixture (combination of RGB), which is a key factor in its ability to display neutral gray tones.
10-Bit Simultaneous Display
Using the DisplayPort or HDMI input, the ColorEdge monitor offers 10-bit simultaneous display from a 16-bit look-up-table (LUT), which means it can show more than one billion colors simultaneously. This is 64 times more colors than you get with 8-bit display, resulting in smooth color gradations and reduced Delta-E between two adjacent colors.
A graphics board and software which support 10-bit output are also necessary for 10-bit display. Equipment that supports DeepColor is required for 10-bit display when connected via HDMI.
Broadcast and Cinema Presets
Preset modes for DCI-P3, BT.709, and BT.2020 ensure you can work in the appropriate color spaces and gamma values. In addition, preset modes for PQ (DCI and BT.2100) and HLG (BT.2100) are available for viewing HDR content. With the built-in calibration sensor, you can conveniently adjust or maintain the brightness setting for each preset.
HDR Gamma Support
The ColorEdge CG2700X features a high brightness level of 500 nits. It supports HLG (hybrid log-gamma) and the PQ (perceptual quantization) curve for displaying and editing HDR (high dynamic range) video content. The optimized gamma curves render images to appear truer to how the human eye perceives the real world compared to SDR (standard dynamic range). This ensures professional creators can reliably display HDR content for editing and color grading.
True Black Display
In compliance with the DCI standard, the monitor offers a high contrast ratio of 1450:1 for producing true blacks that are otherwise difficult to display on a typical LCD monitor. CG Series monitors are also equipped with a retardation film which allows tones to retain their depth even when viewed from an angle.
DCI-4K Cropping
The DCI 4K Cropping function allows the user to display a DCI 4K (4096 x 2160) signal and crop content outside the bounds of the panel's native 4K UHD (3840 x 2160) resolution. Users can select from three options that determines which part of the image is cropped.
Nearest Neighbor Interpolation
The ColorEdge CG2700X offers Nearest Neighbor interpolation setting as an option for image scaling and resampling. When upscaling, Nearest Neighbor copies and aligns pixels to the closest adjacent position, maintaining color fidelity. When Nearest Neighbor is turned off, the monitor uses an interpolation method that balances gradation of the surrounding pixels for smooth color tone. Editors can easily choose the interpolation method best suited to the project via the monitor's OSD menu to ensure content looks as intended when upscaling to 4K.
Luminance Warning
The monitor includes a function that shows the areas of the image that cannot be displayed correctly at the current brightness settings. These areas are marked in yellow or magenta and can be viewed for brightness levels of 300, 500, 1000, and 4000 nits.
4K Zoom
Enlarge areas of the screen to confirm small details and check focus accuracy in images using the 4K zoom function. It is quickly and easily accessible using the monitor's front buttons.
BT.709 Out of Gamut Warning
The monitor includes a Gamut Warning preset that when selected, indicates areas of a BT.2020 image that cannot be reproduced using BT.709 by converting them to shades of gray. An additional mode called BT.709 Clipping allows the editor to view BT.2020 images within the BT.709 color space, simulating how it would look to their audience in an HDTV environment.
Automatic Color Settings
To ensure color settings stay consistent throughout production, the monitor includes a Sync Signal function which automatically adjusts the monitor's settings, such as input range and input color format, according to the video signal.
Adjusted at the Factory for Smooth Color Gradations
The gamma level for each ColorEdge monitor is adjusted at the factory by measuring the R, G, and B gamma values from 0 - 255, then using the monitor's 16-bit look-up-table (LUT) to select the 256 most appropriate tones and achieve the desired value. This ensures the smoothest color gradations in your images.
Stable Color In 3 Minutes
A typical monitor takes 30 minutes or more for its brightness, chromaticity, and tone characteristics to stabilize. The ColorEdge CG2700X takes a mere 3 minutes. Whether you are working in a studio or taking the monitor with you on location, you get reliable color display soon after turning the monitor on.
Stable Display Using AI
The color and brightness of an LCD monitor can shift due to changes in ambient temperature and the temperature of the monitor itself. ColorEdge CG Series monitors are equipped with a temperature sensor for accurately measuring the temperature inside the monitor, as well as estimating the temperature of the surrounding environment. With this temperature sensing and estimation technology, the monitor adjusts in real-time, so gradations, color, brightness, and other characteristics continue to be displayed accurately. Furthermore, EIZO uses AI (artificial intelligence) in the estimation algorithm of the CG2700X so it can distinguish between various temperature changing patterns to calculate even more accurate correction.
Uniformity Across the Screen
LCD monitors commonly exhibit fluctuations in brightness and chromaticity across the screen, affecting color accuracy. To counter this, ColorEdge monitors are equipped with EIZO's patented digital uniformity equalizer (DUE) technology which corrects deviations in every tone across the screen to ensure stable display.
Punched Metal Design
The ColorEdge CG2700X's sleek, new design incorporates punched metal on the back side that allows for more airflow, keeping the monitor cool without a noisy fan. A carrying handle on the back of the monitor allows you to easily move it to other locations.
Light Shielding Hood
The ColorEdge CG2700X comes bundled with a light shielding hood that effectively prevents glare on the screen caused by ambient lighting. The hood is newly designed to be lightweight and easily attaches to the monitor magnetically without needing to connect separate parts.
Ergonomic Stand
Adjust the screen to the most comfortable angle and reposition it to show your work to a colleague or client. The monitor comes with a versatile stand that offers height, tilt, and swivel adjustments. The stand is also equipped with a quick release that allows you to easily remove the screen from the stand with a single touch.

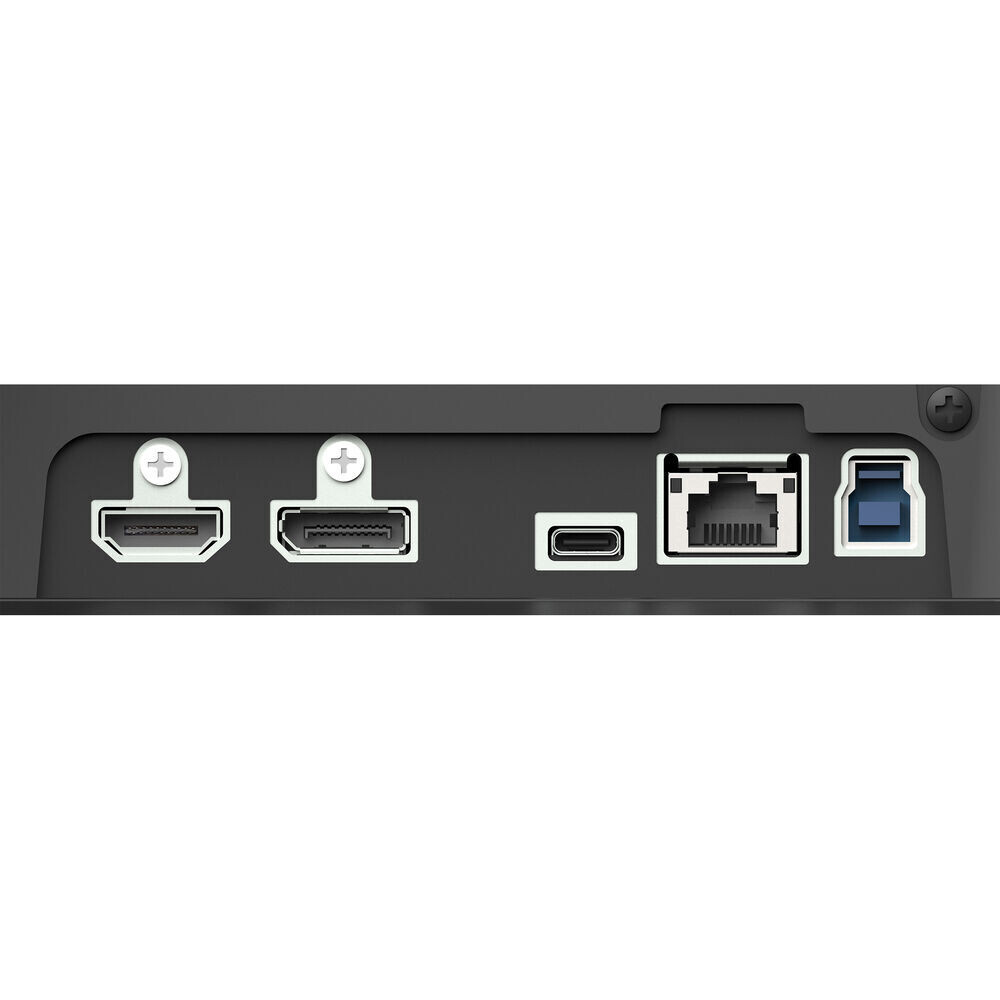

Multiple Inputs
In addition to USB-C, the monitor is equipped with DisplayPort and HDMI inputs. It also includes four USB ports (two USB-A 3.2 Gen 1 and two USB-A 2.0) for connecting additional devices or peripherals.
Limited 5-Year Manufacturer's Warranty
ColorEdge monitors are backed by a limited 5-year manufacturer's that covers all components, including the LCD panel, with up to 30,000 hours of usage time. EIZO manufactures its products at its own factories to allow close control over production quality and ensure each monitor is built to last.
Zero Bright Pixels
EIZO guarantees its ColorEdge monitors will be free from bright sub-pixels for six months from the date of purchase.
